Electric Tow Tug Verhagen Leiden V-Move 4XL
Tow Tugs & Electric Movers
Electric Tow Tug Verhagen Leiden V-Move 4XL
Tow Weight upto: 40,000kg
Dimenions: 72(h) x 123(w) x 202(l)
A heavy duty Tow Tug offering a whopping 40,000kg capacity. Easy to manoeuvre and use with the power assisted steering. This mover is capable of handling a range of large items with ease.
Large, heavy-duty electric tow tug
With a 40,000kg capacity, the V-Move 4XL is a step up from our V-Move 3XL. It has powerful drive motors and hydraulic steering, allowing you to move heavy loads with no effort.
Due to its size, there’s not a lot this electric tug can’t move. As the V-Move trailer tug machine is so adaptable, customers use it to move all sorts of things. This includes space apparatus along a production line. As well as specialist medical trailers.
This electric power tugger is designed for handling large loads. Discover the features, benefits, and applications that make the V-Move 4XL an exceptional solution for heavy-duty towing needs.
Battery & charging
A full charge of our V-Move electric tow tugs can last one to two working days (depending on usage and environment). Enhanced batteries are available on request.
Our chargers are external and use a standard UK 3-pin plug socket. The charging box must be wall-mounted to help with air circulation. The charger plugs into the side of the trailer tug. Meaning you do not have to remove the batteries.
Full charging takes 5 to 8 hours, which is perfect for charging overnight. The charger is a trickle charger, meaning you cannot overcharge.
Electric Power Tug Benefits
- Powerful Performance: With a robust 40,000kg towing capacity, the V-Move 4XL effortlessly moves heavy loads, offering unparalleled power and efficiency. Many tow tugs make light work of otherwise difficult and time-consuming manual handling. With the V-Move heavy electric tow, however, you’re making near-impossible-to-move loads almost effortless.

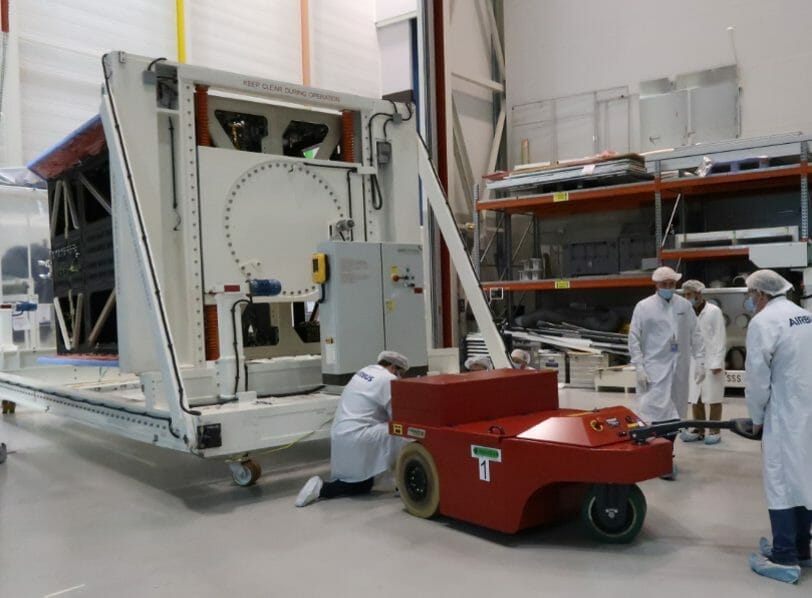

- Dependable Solutions for Critical Tasks: The V-Move 4XL’s size and adaptability make it versatile for many important applications, from moving space apparatus along production lines to transporting specialist medical trailers.
- Customisation Options: Tailor your tow tug machine with options such as custom colours, sirens, beacons, fifth-wheel couplings, and remote controls to meet specific operational needs.
Configure your tow tug to your needs.
This unit can have different warning systems & couplings fitted. Whatever the application, we should be able to configure a machine for you.
Motion Siren
A motion siren can warn others in the vicinity that an item is been moved. Applicable whether the unit is in forward or reverse.
Beacons & Lights
Flashing beacons and motion sirens are available to warn others in the vicinity items are moving. Beacons can be fitted to the mover or on a pole.
Solid Rubber Tyres
Ideal for indoor use in factories and warehouses. Puncture resistant with great traction.
Non-Marking Tyres
Working in a clean environment, solid rubber non-marking tyres are available in different sizes.
A-Frames & Towing Eyes
If you already have pins fitted on your loads, a range of A-Frames are available for your mover providing easy and secure hitching.

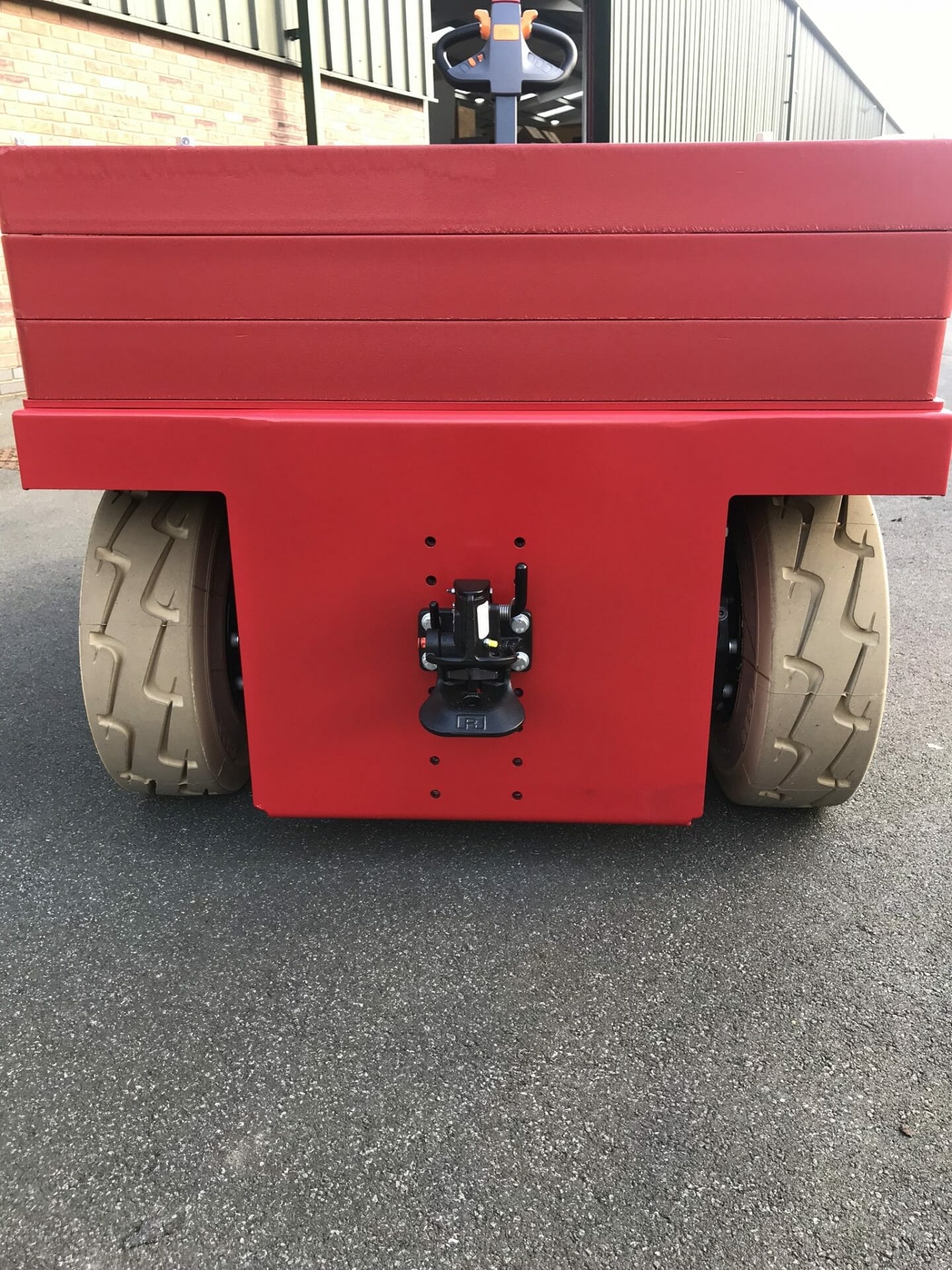

Industrial Pin
Heavy duty pin with r-clip to securely move all manner of loads and trollies around. Ideal if your loads are fitted with a hitching eye.
Open Pin
If you are hitching a load on and off your mover frequently, you may want to consider this option for increased speed and efficiency.
Tow Ball
Tow balls are available for attachment to your mover, enabling use with standard trailer hitches fitted on your loads.
Central Hydraulic Hitches
Needing to hook the mover under your load or easily attach a trailer? Hydraulic lift options are available.
Rear Hydraulic Hitches
Needing to hook the mover under your load or easily attach a trailer? Hydraulic lift options are available.
Custom Colours
As standard, our movers come in a bright red colour however if you have specific colours you want to use, we can offer this.
Remote Control
Ideal for providing extra visibility whilst moving the load. Stand back and control the movement with full view.
Specification & Additional Information
Information regarding machine specification, warranties offered and maintenance are below.
- Voltage / Power 48V 16,000Watt
- Towing Capacity 40,000 kg
- Tyres Solid
- Charger 48V 40A External
- Battery Maintenance-free 48v 320Ah
- Dimensions 202 x 123 x 72 cm
- Weight 1,600kg incl. batteries
- – 1-year manufacturer warranty
- – Extended warranty available
- – Maintenance-free day to day operation
- – Low wear rate on components
- – No servicing requirement unless requested
- – On-site & off-site servicing available
- – Anti-trap button
- – Emergency stop button with full machine shutdown and restart procedure
- – Key switch ignition
- – Automatic handbrake
Purchase & Training Options
A full range of finance, hire purchase & contract hire options are available. We can also arrange formal training during V-Move handover.
V-Move Heavy Electric Tug Features
- Impressive Capacity: With a pull/push capacity of up to 40,000 kg, the V-Move 4XL stands out for its exceptional strength in handling heavy loads.
- Dual Power: Powered by 2 x 8,000-watt electric motors, this tow tug ensures robust performance, making it a reliable workhorse for heavy-duty towing applications.
- Convenient Charging: Equipped with an external battery charger, the V-Move 4XL facilitates easy and efficient charging, ensuring minimal downtime.
- Maintenance-Free Operation: The V-Move 4XL comes with maintenance-free batteries, reducing the need for regular upkeep and enhancing day-to-day operational efficiency.
- Variable Speed Control: Adjustable speeds (from 0 to 6 km/h) allow precise control based on your specific towing requirements.
Heavy Electric Tug Safety Features
- Electromagnetic Parking Brake: Ensures secure and stable parking, enhancing safety during operation.
- Battery Indicator: Keep track of the battery status at a glance, allowing for timely charging and uninterrupted workflow.
- Belly Button Safety Switch: An additional safety measure to prevent unintended movement, enhancing operator and bystander safety.
- Horn: Enhances communication and alerts in busy operational environments, promoting a safer working environment.
Electric Tug Mover Optional Added Features
- Counterweight: Opt for an additional counterweight to enhance stability and balance, enabling your electric power tug to take on uneven terrain.
- Various Couplings: Customise your V-Move 4XL with a range of couplings to accommodate diverse loads and towing requirements.
- Non-Marking Tyres: Choose non-marking tyres to minimise the risk of leaving marks or residue on floors while ensuring optimal traction.
The V-Move 4XL combines many robust standard features (including exceptional safety features) with optional enhancements, offering a tailored solution for heavy electric tow requirements. Get in touch with our tow tug experts to learn more about how the V-move 4XL heavy-duty electric tug and discuss how we can help you meet your lifting needs.
Heavy-Duty Tow Tug Training
The Verhagen Leiden V-Move 4XL is a large and powerful piece of equipment used for potentially dangerous tasks. That’s why we offer full training to ensure you can use your tow tug safely and effectively. Book a no obligation demo to get hands-on with the V-Move 4 XL.
The Next Step
Interested in learning more? Like some more information? Want to see a unit or two in action?
No-obligation & no hard sell.
We want customers to see & experience our machines in the flesh. We believe you will love them.
It gives you a chance to see them in action and operate them. It also gives us a chance to see your site or facility and discuss your requirements further.
One of our technicians/trainers will come to your site and meet you. No sales pitch, no pressure.
Get a quote.
If you want a price, just let us know. If you complete the right-hand form then we will send you a quote.
We do not have prices on our website as the V-Move tow tugs are built from the ground up based on customer requirements.
Want a bit more info?
If you want some further information but unsure whether you want a quote just yet… just let us know!

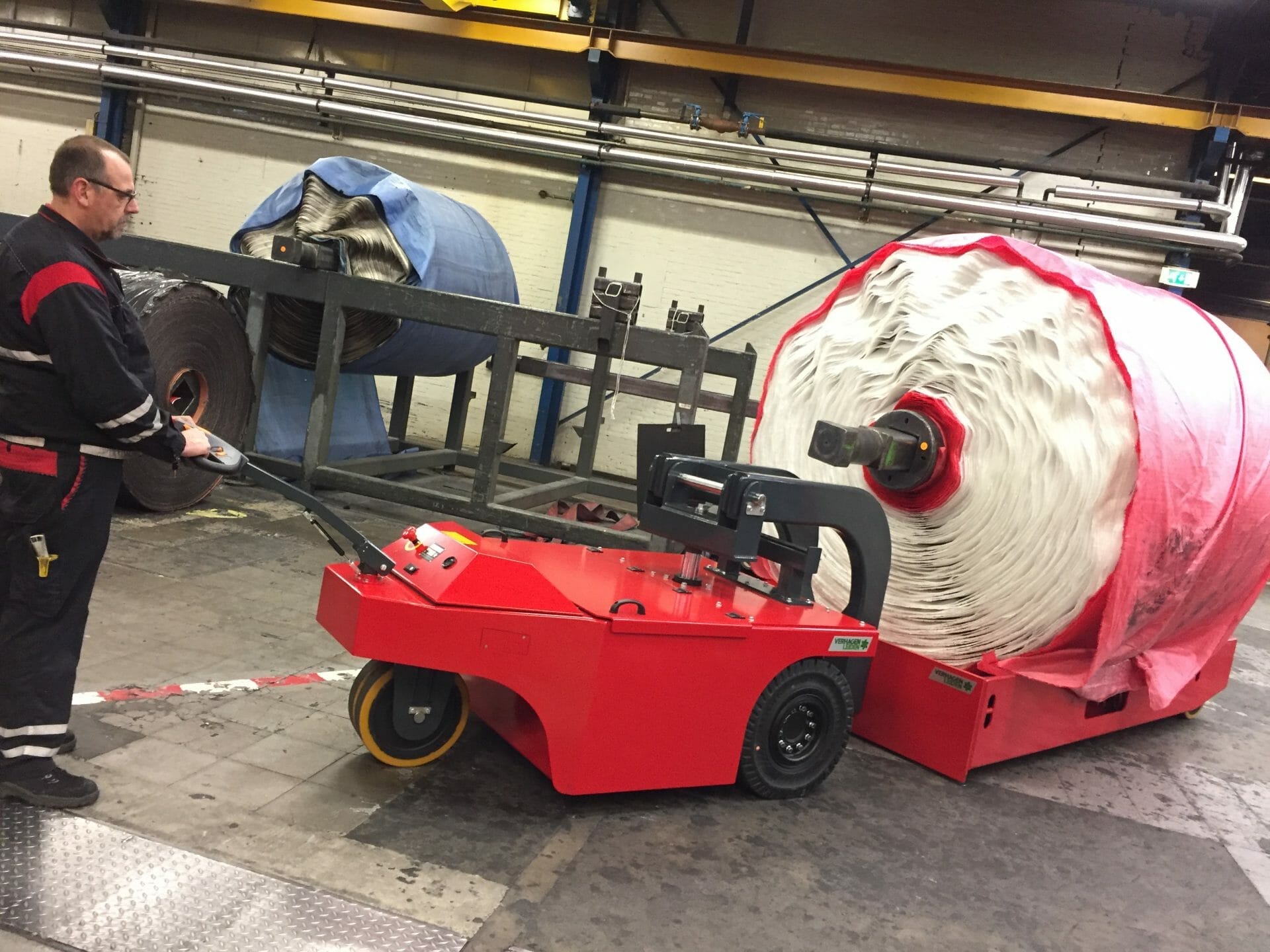

V-Move Tow Tugs In Action
V-Move tow tugs are flexible and versatile. Customers use them for all sorts of weird and wonderful things!
